Forward Section of B17G.......................................................................................
Legend is below................................................................................................................................
Details available are:   Bombardier    Chin Turret ........ Top Turret .................................
.............................   Pilot's Panel....Rudder Peddles   Stearing Column................

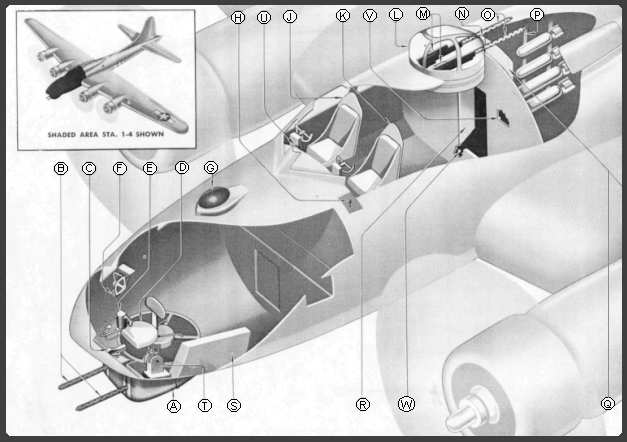

FORWARD DETAIL IMAGE

LEGEND

..A  Bendix Chin Turret
..B  (2)M2 Mach. Gun .50cal
..C  Bomb Site Mount
..D  Bombardiers Seat
..E  Bendix Chin Turret Control
..F  Bendix Chin Turret Site
..G  Astrodome
..H  HANDLE - Emg.Bomb Release		 ..J  Armorplate, Co-Pilots
..K  Armorplate, Pilots
..L  Turret - Upper
..M  Gun Greach Heater
..N  Armorplate, Top gunner
..O  (2)M2 Mach. Gun .50cal
..P   Bomb Rack, Outboard (2)
..Q  Armorplate, Top gunner		 ..R  Armorplate blocking door
..S  Bombarders Control Panel
..T  Bombarders Stand
..U  Switch - Emg.Bomb Release
..V   Switch - Emg.Bomb Release
..W  HANDLE - Emg.Bomb Release
..
..
