BOMBARDIER CONTROLS on B17G...........................................

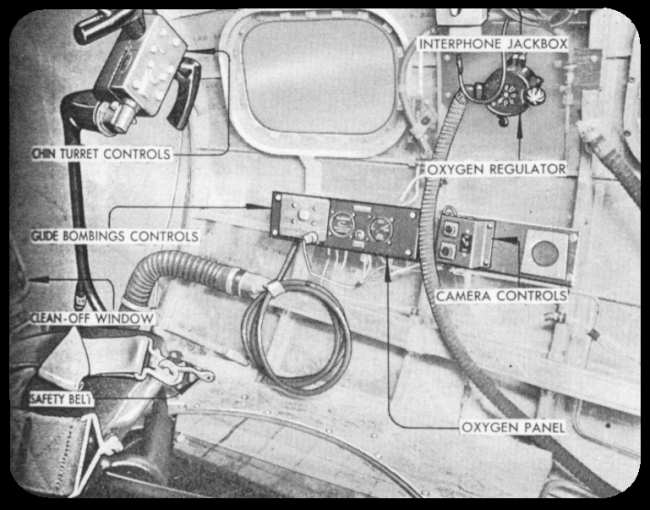

<-----Controls to the left of this photo appear below............................................

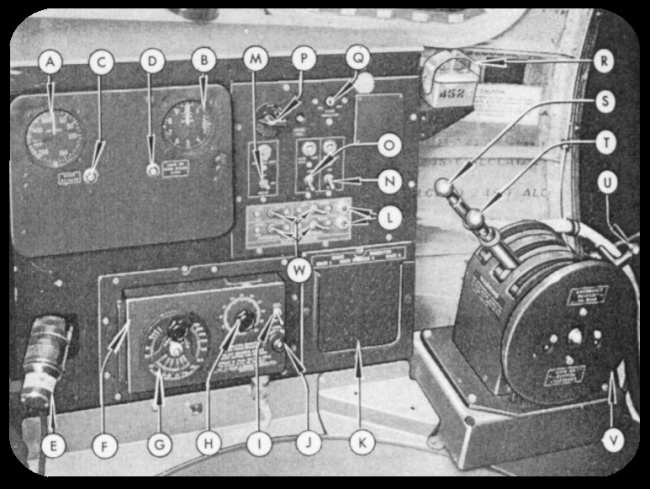

BOMBARDIER CONTROLS

LEGEND

..A  Airspeed Indicator
..B  Altimeter CLOSE UP
..C  Bomb Release Light
..D  Bomb Door Open Light
..E  Fluorescent Light
..F  Intervalometer
..G  Interval Between Bombs Knob
..H  Bombs to Release Knob		 ..I  Select-Train Switch
..J  Intervalometer-on Light
..K  Bomb Load Indicator Lights
..L  External Bomb Load Lights
..M  Bomb Formation Switch
..N  Pilot Call Switch & Light
..O  External Bomb Nose Fuse
..P   Fluorescent Light Rheostat		 ..Q  Bomb Indicator Light-Switch
..R  Bomb Release Switch
..S  External Bomb Rack Handle
..T  Internal Bomb Rack Handle
..U  Bomb Door Handle
..V   Emergency Release Cable
........Rewind Wheel
..W  Rack Selector Switches
..
.........

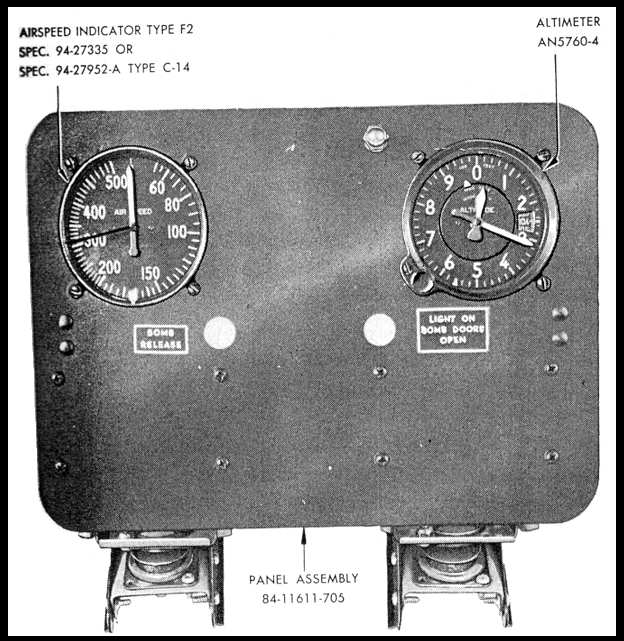

BOMBARDIER CONTROLS

Close Up of controls in top photo.
